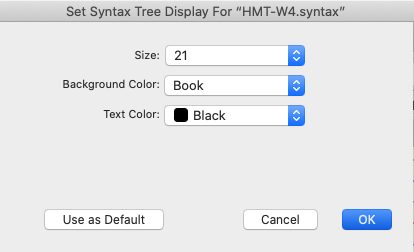

Set Syntax Tree Display Dialog Box
Prerequisites for use: A Syntax Tree is the active
The application, window, tab, or other screen element which is currently being used; sometimes called the "front" or "frontmost" screen element tab.
Use: The Set Syntax Tree Display dialog box is used to define how data is displayed in the active Syntax Tree tab.
Description: The various settings affect how the Syntax Tree is displayed in the table. Changes affect only the active Syntax Tree tab. If you want your changes applied to all future Syntax Tree tabs, click Use as Default.
Open the Set Syntax Tree Display Dialog Box
- Right-click anywhere on the Syntax Tree and choose Set Syntax Tree Display from the shortcut menu Also known as a contextual menu, acessed by right-clicking (or pressing Ctrl+Click, Mac only) over a screen element that appears.
- Press
- On the Display menu, choose Set Syntax Tree Display.
Options in the Set Syntax Tree Display Dialog Box
Font size Pop-up Menu: Used to change the point size of the font used in the Syntax Tree display.
Background Color: Used to choose from a wide selection of background colors, or creating a custom color.
- Choose Custom Color: Opens the standard Macintosh dialog box offering several options for defining a color.
- Custom: Selects the currently defined custom color.
Text Color: Used to choose from a wide selection of background colors, or creating a custom color.
- Choose Custom Color: Opens the standard Macintosh dialog box offering several options for defining a color.
- Custom: Selects the currently defined custom color.
